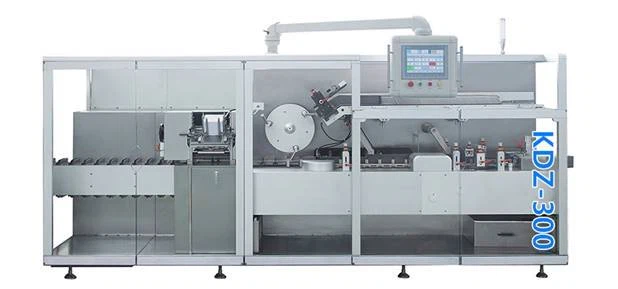

KDZ-350 High Speed Box Cartoning Machine
High speed cartoning machine speed can reach 300-350boxes/min. This machine suitable large production, especially in pharmaceutical, food, cosmetics industry.
High speed cartoning machine always connect to front machine, working full automaticlly. Machine can add instruction paper, later sticker, date printer, hot melt glue, quality inspection, weight checker on line.

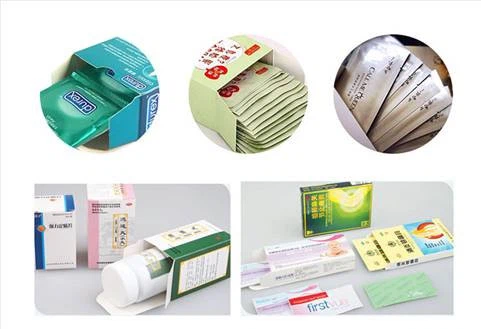

The Machine can handle a wide range of products, including bottles, blister packs, tubes, sachets, and pouches. The machines can also accommodate different types of carton formats, such as tuck-end cartons, gable-top cartons, and tray-style cartons.
One of the key benefits of a high speed box cartoning machine is its ability to increase production efficiency and reduce labor costs. These machines can handle large volumes of products at high speeds, reducing the need for manual labor and increasing output. They can also help improve product quality and consistency by reducing errors and minimizing product handling.
Main technical parameters:
Speed | 350 boxes/min | |
Box | Quality requirement | 250-350g/m2 |
Dimension range (L*W*H) | (70-180)mm*(35-80)mm*(14-50)mm | |
Quality requirement | 60-70g/m2 | |
Leaflet | Unfolded leaflet specification (L*W) | (80-250)mm*(90-170)mm |
Fold range | (1-4) fold | |
Compressed air | Working pressure | ≥0.6mpa |
Air consumption | 160-200L/min | |
Power | 220V/380V | |
Motor power | 5kw | |
Machine dimension(L*W*H) | 4800mm*1600mm*1860mm | |
Machine weight | 3000kg | |
How does a cartoning machine work?
Cartoning machines work by automating the process of filling and closing cartons or boxes. The specific operation of a cartoning machine can vary depending on the design of the machine and the type of products being packaged, but the general process usually includes the following steps:
Product Feeding: The first step in the process involves feeding the product into the machine. This is typically done through a conveyor system that delivers the product to the machine’s product feed station.
Carton Forming: The next step is to form the cartons or boxes. The machine pulls carton blanks from a magazine, which are then folded and glued to form the carton.
Product Loading: The product is then loaded into the cartons. Depending on the design of the machine, the product may be placed into the carton by a pick-and-place mechanism, by gravity, or by another type of loading mechanism.
Carton Closing: Once the product is loaded into the carton, the carton is then closed and sealed. This can be done using a variety of methods, including tucking the flaps, gluing the flaps, or using a mechanical closing mechanism.
Carton Ejection: Finally, the completed carton is ejected from the machine and conveyed to the next stage of the packaging process.
The operation of a cartoning machine can be controlled by a programmable logic controller (PLC), which can be programmed to adjust the machine’s speed, timing, and other parameters to optimize performance and efficiency. Some cartoning machines may also incorporate vision systems to ensure that the product is properly oriented and positioned in the carton. Additionally, some machines may have features such as automatic reject systems to remove improperly packed or defective products, and automatic changeover capabilities to accommodate different product and carton sizes.
