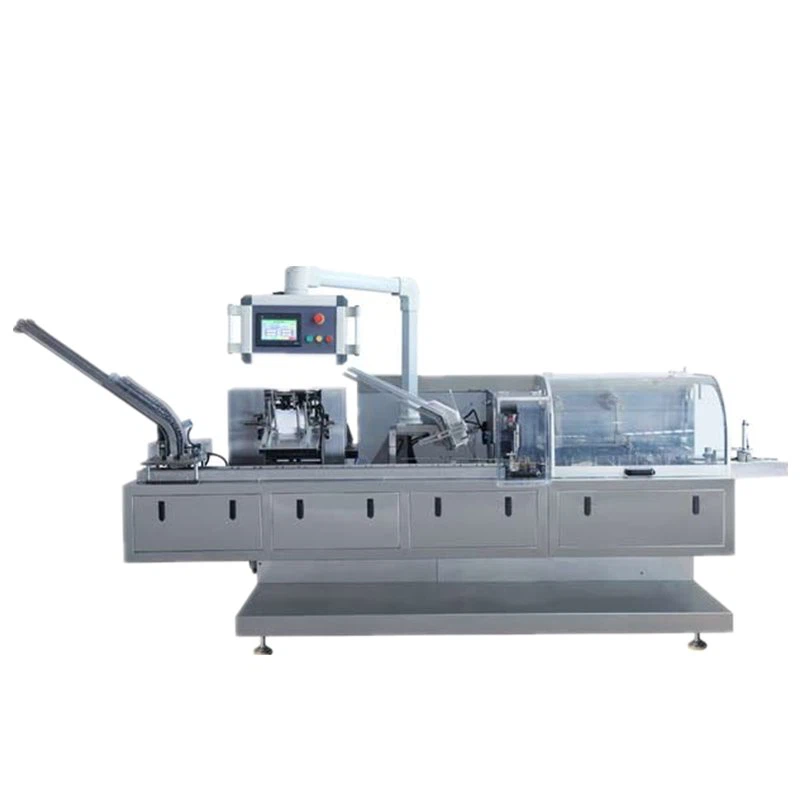

KDZ-130 Automatic pregnancy measuring paper packing machine
Automatic cartoning machine is a new product. It is a multi function machine with electricity, gas integrated. With small size, light weight, wide application and high efficiency. It can pack the products in the given cartons then send the cartons out after sealing. Suit to medicines, food, cosmetics and other related industries carton packing products. It can be used in single or used with other machines.
This machine is more suitable for pharmaceutical packaging, with aluminum-aluminum, aluminum-plastic, aluminum aluminum-plastic blister packaging machine on-line use,the best result; accord with “national drug production quality control” – “GMP” the relevant requirements.
| Model: | KDZ-130 | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 2000 Kg | |
