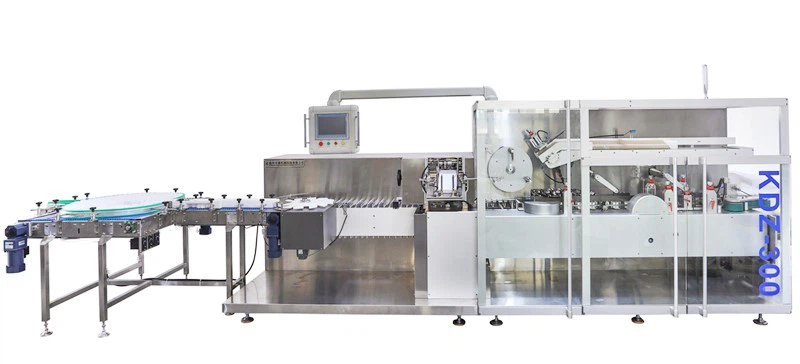

Overview
The high-speed machine is predominantly employed in the pharmaceutical, cosmetics, daily chemical products, and food industries due to its high production.
Features
This High Speed Machine fully automatic, which can automatically feeding product, sending by conveyor, opening box, pushing product into box, closing box, finished product output! while reducing the required labor, saving a lot of money for manufacturers.
The machine can produce a variety of packaging boxes with different specifications, and users can adjust the different specifications through the touch screen and ajdusment machine.
Machine can connect front product making machine, and packaging machine, labeling machine Box filling machine, Wrapping machine.
Optional: Hot melt glue, GUK paper folder, Date coding,Detection system,Weighing system, and so on.
Technical parameter
| Cartoning machine | Box specification (length*width*height) | (70～180)×(25～120)×(14～70)mm |
| Box paper specification | white cardboard 250~350g/m2 | |
| Tablet instruction sheet size(Length*width) | (90～260)×(100～190)mm | |
| Tablet instruction sheet specificatioin | 60-75g/m2(printing papaer) | |
| Main motor power | 3.5KW | |
| Speed | ≤00boxes/min | |
| Power supply | 380V 50Hz | |
| Air pump | Volume | ＞0.2 m3 |
| Air pressure | 0.4~0.8MPa | |
| The whole production line (length*width*height) | 5100×2900×2000mm | |
| Total weight | 4500 kg | |
| Total power | 8KW | |
| Total Air consumption (Max) | 100 L/min | |
The main characteristics of a high-speed box packing machine include:
1.High Speed: These machines are designed to operate at high speeds, allowing for efficient and rapid packaging of products.
2.Versatility: The machines can handle a wide range of products, including boxes of different sizes and shapes, and products of varying weights and dimensions.
3.Customizable: The machines can be customized to meet the specific needs of different products and packaging requirements.
4.User-Friendly: The machines are designed to be user-friendly, with intuitive interfaces and easy-to-use controls.
5.Durable: High-quality materials are used in the construction of the machines, ensuring that they are durable and long-lasting.
6.Low Maintenance: The machines are designed to require minimal maintenance, reducing downtime and increasing productivity.
7.Accurate: The machines are capable of accurately placing products in boxes, reducing the risk of damage and ensuring that products are packaged correctly.
8.The applications of a high-speed box packing machine are diverse and include the packaging of a wide range of products, such as:
9.Food: Such as cereal, snack foods, frozen foods, baked goods, and more.
10.Beverages: Such as bottled water, juice, soda, beer, and other bottled drinks.
11.Pharmaceuticals: Such as over-the-counter medicines, prescription drugs, and medical supplies.
12.Cosmetics: Such as skincare products, hair care products, makeup, and more.
