Product Information

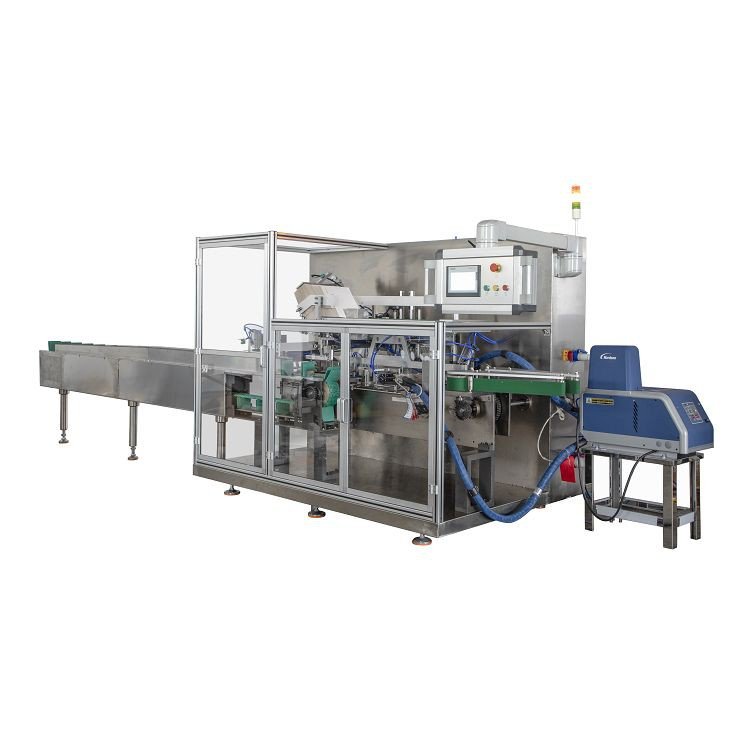

This automatic box packing machine can be widely used in almost every field, such as food industry, pharmaceutical industry, hardware industry, cosmetics industry, daily necessities industry, etc. The packaging machine can replace manual tooling and boxing, greatly improving production capacity and reducing labor costs. The machine can add date codes, built-in instructions, etc. according to the customer’s product requirements.
Features

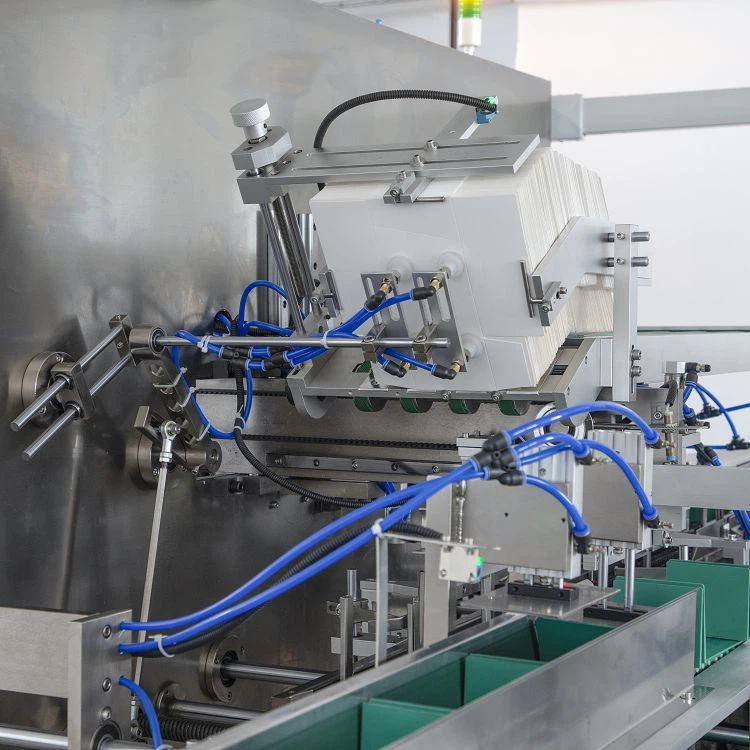

The body of our automatic box packing machine is spray-coated with stainless steel and equipped with a paper feeding system, which can realize the function of adding new cartons without stopping, and is suitable for the packaging of medicine and food. The whole set of equipment is made of stainless steel 304 material. It adopts PLC control and has touch screen operation function. At the same time, its production speed can be adjusted at will, and the adjustment of other related parameters is also very convenient.
Specification
Model: | KDZ-100 automatic box packing machine | |
Speed： | 30-100boxes/min | |
Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
Instruction book： | Paper material | 50-65g/m2 |
Unfolded size range | （80-300）mm*(70-210)mm | |
Folded size range | 1-4 folded | |
Box material： | 250~450g/㎡ | |
Main motor power： | 1.5 kw | |
Power supply： | 380V 50Hz (220V 60 Hz) | |
Work pressure： | 0.5-0.7 Mpa | |
Compressed gas consumption: | ≥ 0.3m3/h | |
Dimensions | 3200×1200×1900mm | |
Machine weight： | 2000 Kg | |
