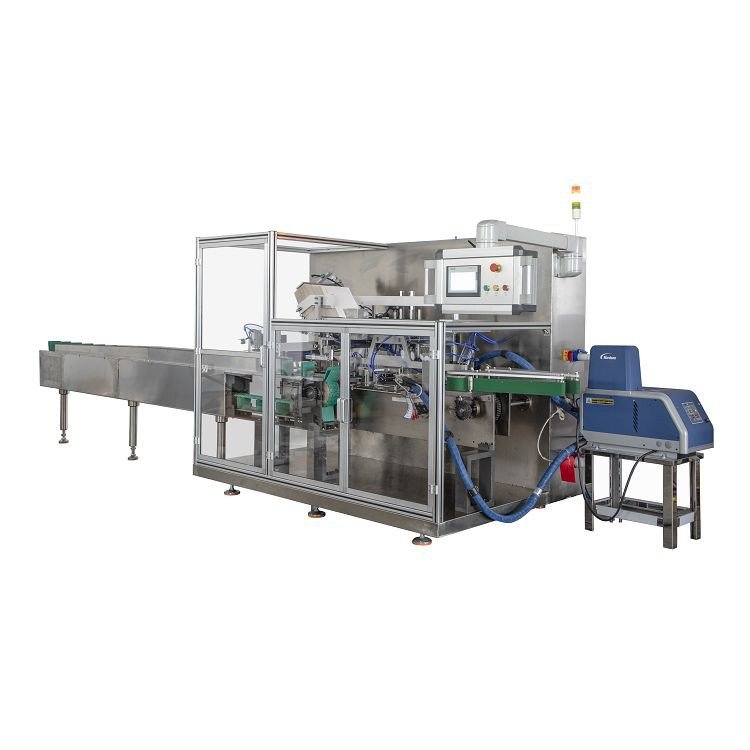

Automatic ointment packing production line
Multi-functional horizontal automatic box packing machine is a new type of machine developed by our company with advanced technology at home and abroad. It is a high-tech product integrating light, electricity and machine. So that the equipment performance and work efficiency has been greatly improved, to achieve the rapid box loading requirements, and maintain a stable and reliable state in operation.
| Model: | KDZ-130 | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 2000 Kg | |
The automatic ointment packing production line typically includes several components, such as:
Tube/Bottle Filling Machine: This machine is used to automatically fill tubes or bottles with ointment or cream. The machine can be customized to handle different types and sizes of tubes or bottles, and can be designed to fill the containers with a specific amount of product.
Capping Machine: This machine is used to automatically cap the tubes or bottles after they are filled with ointment or cream. The machine can be designed to work with different types of caps, such as screw caps, flip-top caps, or snap-on caps.
Labeling Machine: This machine is used to automatically apply labels to the tubes or bottles. The machine can be customized to print product information, such as brand name and product specifications, on the labels.
Cartoning Machine: This machine is used to automatically pack the tubes or bottles into cartons for shipping or distribution. The machine can be customized to handle different types and sizes of cartons, and can be designed to pack a specific number of tubes or bottles into each carton.
Inspection System: This system is used to inspect the tubes or bottles for defects or quality issues. The inspection system can be designed to detect defects such as air bubbles, cracks, or leaks.
