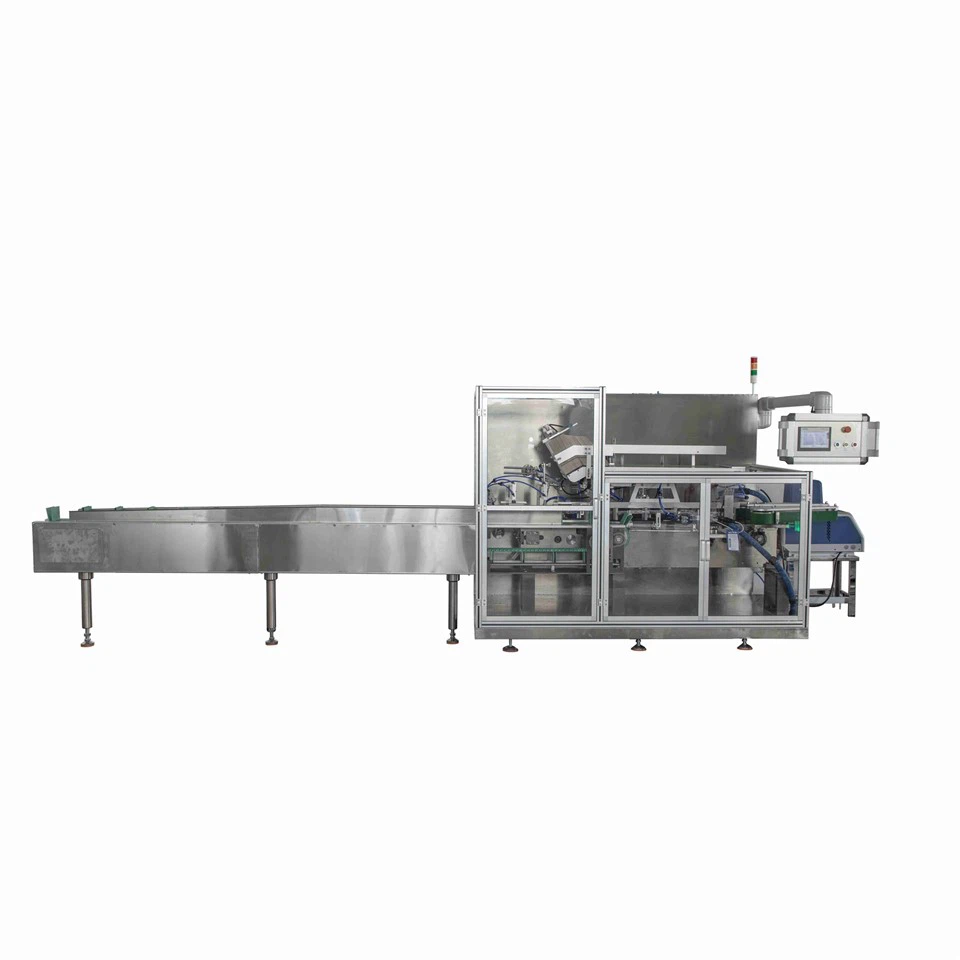

Product Information
The automatic box cartoning machine can load your product into a carton and close the box automatically. It is suitable for food, cosmetics, daily necessities, etc. It does all the work on the carton to open the carton, insert products and leaflets into the carton, print the date number, and close and automatically eject the carton.
Features
The automatic box cartoning machine is equipped with a series of sensors and automatic protection devices, which can ensure the safe and efficient operation of the machine. It can be connected with a blister machine, pillow packaging machine, shrink packaging machine, etc. to become a fully automatic packaging line. This machine is the best choice for mass production.
The specific operation of a cartoning machine can vary depending on the type of machine and the product being packaged. Some cartoners can handle multiple products or product types, while others are designed for a specific product size or shape.
Cartoning machines can be used for a wide range of products, including food items, pharmaceuticals, cosmetics, and consumer goods. They offer a fast, efficient, and reliable way to package products, reducing labor costs and increasing productivity.
Specification
| Model: | KDZ-130 automatic box cartoning machine | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 2000 Kg | |
How does a cartoning machine work?
A cartoning machine, also known as a cartoner, is an industrial machine that is used to automatically pack products into boxes or cartons. The machine works by picking up individual products from a feeding mechanism, placing them into a pre-formed box or carton, and then sealing the box or carton shut.
Here’s a basic rundown of how a cartoning machine works:
Feeding: Products are fed into the cartoning machine using a feeding mechanism such as a conveyor belt or a hopper.
Carton forming: The cartoning machine forms a carton from a flat sheet of corrugated or solid board, folding and sealing the edges to create a box.
Product loading: The machine then picks up individual products and places them into the carton. This can be done using a variety of mechanisms, including pick-and-place arms, suction cups, or belts.

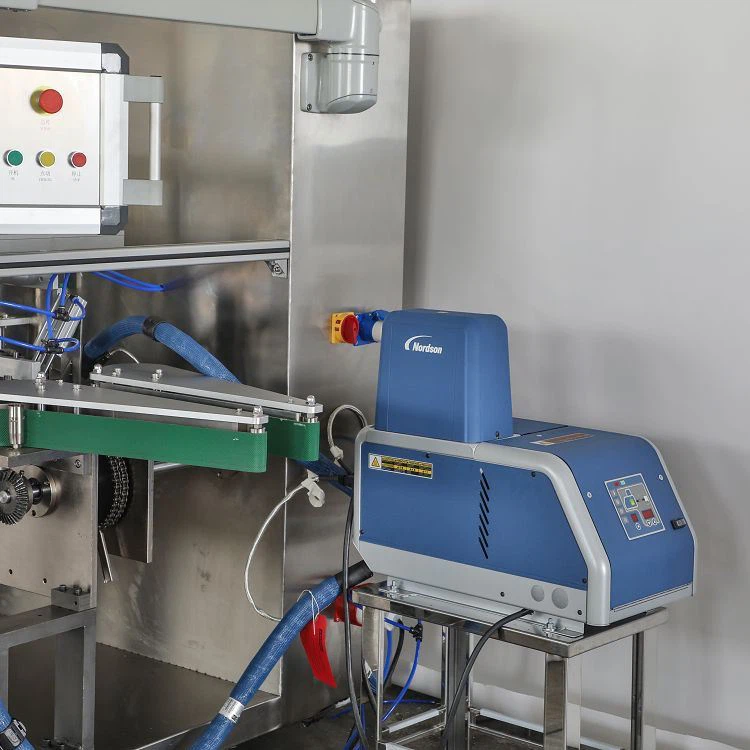

Closing: Once the products are inside the carton, the cartoning machine seals the carton shut using a variety of methods, including hot melt glue, tuck flaps, or adhesive tape.
Discharge: The finished carton is then discharged from the cartoning machine onto a conveyor belt or other output mechanism.
