Product Information

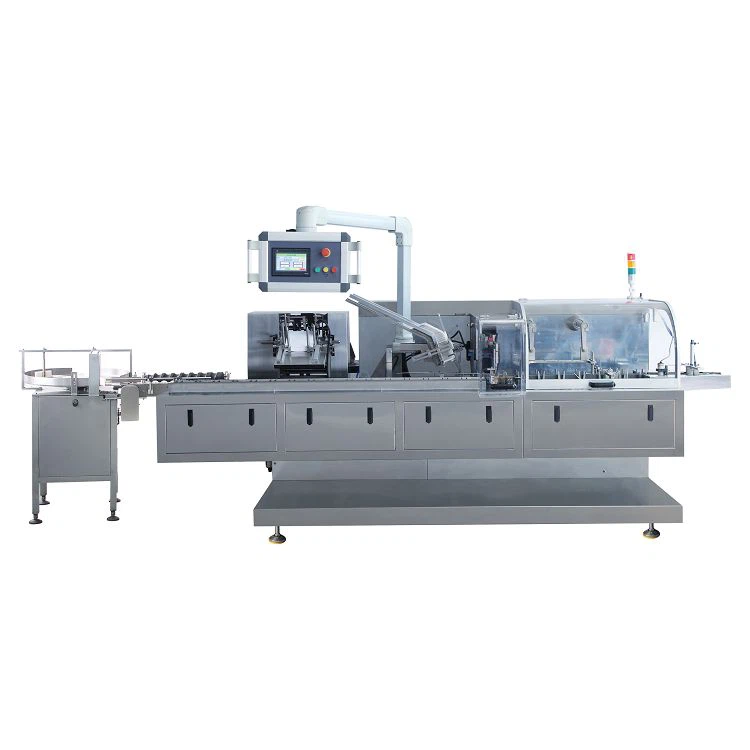

The automatic box packing machine can be divided into vertical cartoning machine and horizontal cartoning machine according to the structure of the machine itself. Generally speaking, the vertical cartoning machine has a faster cartoning speed, but the packaging range is small, and it is usually only used for single product packaging such as medicines. The automatic horizontal box packing machine can undertake the packing of various products, such as soap, medicine, food, hardware, auto parts, etc.
Features
The automatic horizontal box packing machine is mainly composed of belt feeding, belt withdrawal, joint connection and cutting device, transmission system, rail frame and control device. It uses baler technology to design the whole machine with dual-circuit control, which is more stable and reliable than the previous single-circuit control performance. The dual-circuit control reduces the internal load of the machine’s electric board, and the horizontal baler structure runs smoothly and stably between each circuit.
Specification
| Model: | KDZ-130 automatic horizontal box packing machine | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 2000 Kg | |
Here are some common features you might find in an automatic horizontal box packing machine:
1.Automatic feeding: The machine has a system to automatically feed products into the loading area.
2.Customizable box size: The machine can be adjusted to fit a variety of box sizes and shapes to accommodate different types of products.
3.High-speed operation: Automatic horizontal box packing machines are designed to operate at high speeds, with some models capable of packing hundreds of boxes per minute.
4.Product loading mechanism: The machine typically uses a conveyor belt or other feeding mechanism to load products into the boxes.
5.Box assembly and sealing: The machine has a mechanism to fold and assemble the boxes, and can use glue or tape to seal the boxes.
6.Quality control: Some machines have built-in sensors to detect and reject boxes that are not properly assembled or sealed, and some have the ability to automatically correct box assembly errors.
