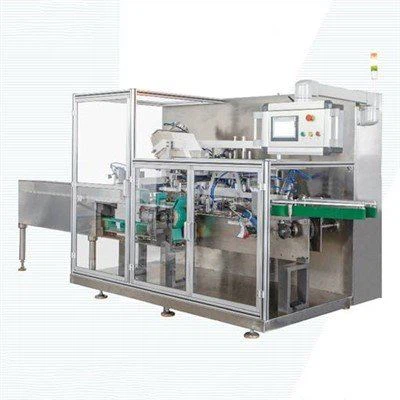

High quality cartoning machine is widely used in almost every field. Food industry, pharmaceutical industry, hardware industry, cosmetics industry, daily necessities industry and so on. Cartoning machine instead of human tooling box, greatly improve production capacity, reduce labor costs. And can be added according to customer’s product requirements, date code, built-in instructions, etc.
Cartoning machine main body is coated with stainless steel after plastic spraying, which is suitable for packing pharmaceutical and food products.
The whole set of equipment is made of stainless steel 304 and 316 material. The machine with PLC and touch screen operation. The production speed can be adjusted, it’s very convenient to adjust other related parameters.
Advanced electrical control system: The imported encoder is used to control the electrical concentration, which is easy to use and simple to operate.
High quality cartoning machine has large storage of box holder, box feeding system can add new box without stopping the machine. The equipment connect to front machine can fully automatic working. Many packing can connect with cartoning machine, such as bottle liquid filling machine, aluminum plastic packing machine, pillow packing machine and blister packing machine etc.
| Model: | CDZ-130 | |
| Speed： | 30-80boxes/min | |
| Size range of cardboard box： | (70-260)mm * (35-130)mm *(20-90)mm | |
| Instruction book： | Paper material | 50-70g/m2 |
| Unfolded size range | （80-250）mm*(90-170)mm | |
| Folded size range | 1-4 folded | |
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): | 3500×1200×1900mm | |
| Machine weight： | 2000 Kg | |
