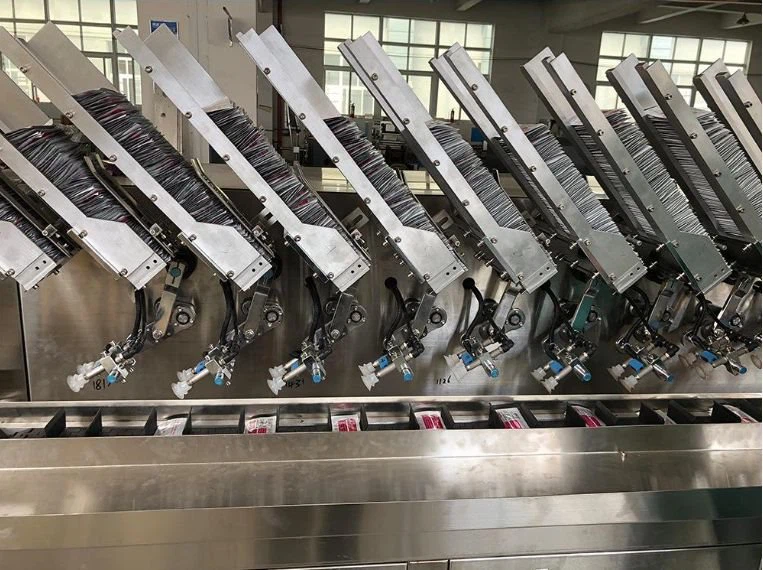

Automatic Packing Cartoning Machine

Automatic packing cartoning machine

Automatic woundplast band-aid packing cartoning machine can achieve full automatic products conveying & feeding, flat carton feeding, carton opening, products pushing, carton folding, carton closing, finished carton package discharging. with the PLC controller, the machine is able to alarm full automatically if any fault operation and display fault prompt on the machine panel for quick troubleshooting.

An automatic packing cartoning machine is a type of automated machinery used in the packaging industry for packing various products into cartons. These machines are designed to improve the efficiency and speed of the cartoning process, while also ensuring accuracy and safety in the packaging of products.

Model:	KDZ-80
Speed：	30-100boxes/min
Size range of cardboard box：	(70-220)mm * (14-90)mm *(14-65)mm
Instruction book：	Paper material	50-65g/m2
	Unfolded size range	（80-300）mm*(70-210)mm
	Folded size range	1-4 folded (70-210)mm X (20-40)mm
Box material：	250~450g/㎡
Main motor power：	1.5 kw
Power supply：	380V 50Hz (220V 60 Hz)
Work pressure：	0.5-0.7 Mpa
Compressed gas consumption:	≥ 0.3m3/h
Dimensions (length × width × height):	3200×1200×1900mm
Machine weight：	2000 Kg

The machine is typically made up of several components, including a product feeding system, a carton forming system, a product insertion system, and a carton closing system. The feeding system is responsible for transporting the products from a storage hopper into the carton forming system, which creates the cartons from flat sheets of cardboard.

Automatic packing cartoning machines can handle a high volume of products, with speeds of up to 200 cartons per minute or more, which makes them an ideal solution for large-scale production. They are also designed to meet strict regulatory requirements and are equipped with safety features to ensure that products are packaged accurately and securely.

These machines are commonly used in the packaging of a wide range of products, including pharmaceuticals, cosmetics, food and beverages, and consumer goods such as batteries and electronic devices. They are also used in the packaging of promotional items and sample products.
