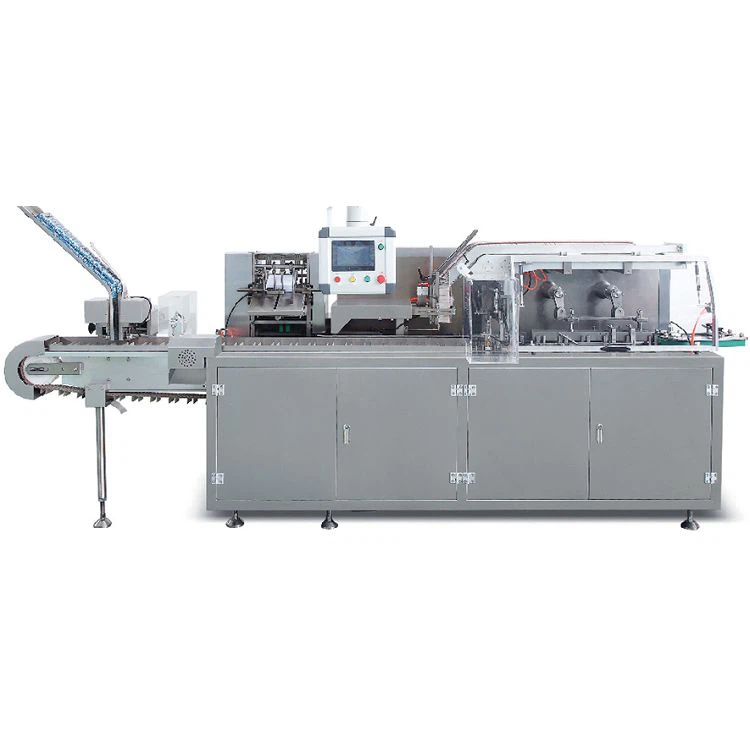

Product introduction
The automatic horizontal box cartoning machine is a high-tech product integrating light, electricity, gas and machine. It is suitable for automatic packaging boxes for medicine bottles (round, square) cosmetics, food, health products and similar bottled items. Its work includes the transmission of medicine bottles or articles, the transmission of medicine instructions (1-4 fold automatic folding and stacking), the automatic telescopic transmission of the carton, loading the medicine bottle and the folding instructions into the carton at the same time, the automatic batching number, and complete complex packaging processes such as automatic batch numbering and paper tongue sealing at both ends.
Features

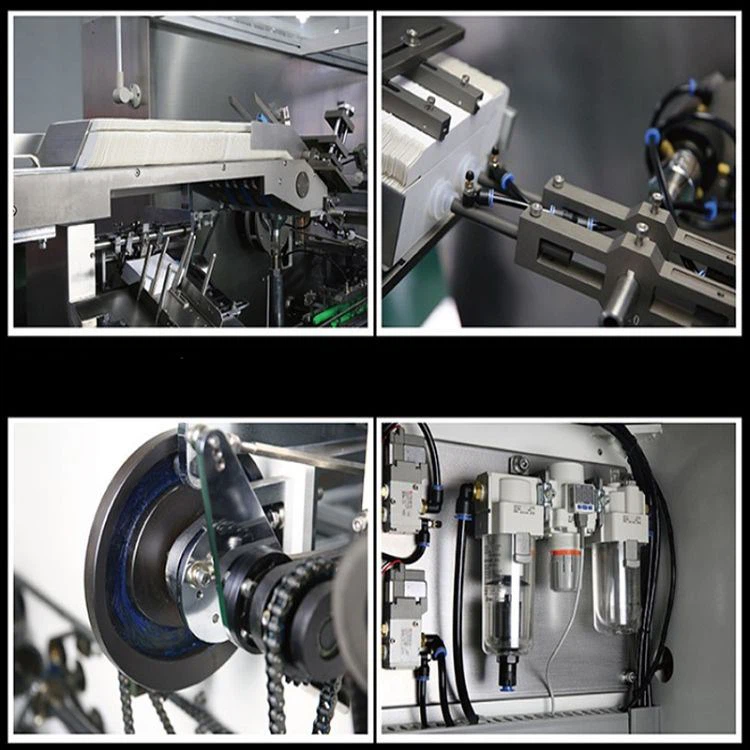

The appearance of the whole automatic horizontal box cartoning machine adopts high-quality stainless steel shell, and its working surface is closed by glass doors and windows. It adopts innovative design and strictly follows the requirements of pharmaceutical industry standards. The transmission part of the machine is designed with overload protection function and equipped with emergency stop device. The operating system adopts a human-machine interface video screen, which can ensure the operator’s personal safety.
Mechanical parameters：
| Model: | KDZ-160 Automatic horizontal box cartoning machine | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 2000 Kg | |
We are a professional Automatic Horizontal Box Cartoning Machine manufacturers in China. Our factory can offer the best box packing machine sale and competitive price. If you are looking for quality suppliers, we are a good choice, and we can support wholesale and customized machines. Contact us now and get a discount.
