Product Information

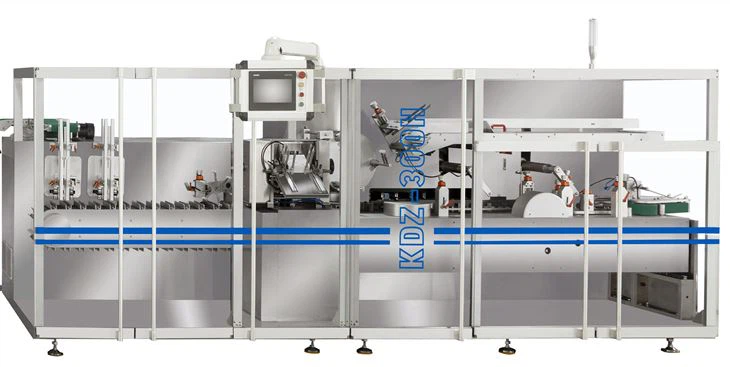

The automatic carton packing machine is suitable for packing sachets, condoms, bars, etc. It has the functions of online small bag feeding detection, single sheet folding (1-4 fold) feeding, single sheet detection, can opening molding, pushing products and single sheets into cartons, printing batch numbers, sealing boxes with folding or hot melt glue devices, and can also automatically eliminate missing leaflets or products and finished products. The machine can be used alone or in linkage with blister packaging machine, shrinking machine, outer packaging machine, strapping machine, etc.
Features
When the automatic carton packing machine is working, it will automatically cut and translate a roll of film on the machine into two packaging films, and automatically pack two lines of items at the same time. One machine has two capacity, which covers a small area, saves people and saves electricity. It uses touch screen control for simple operation, intuitive display, electrical modular design and digital control. The machine uses a non mechanical gearbox, which has stable and reliable operation, low noise and high tracking accuracy.
Specification
| Model: | KDZ-300H | |
| Speed： | ＜300 boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | (80-300)mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
4200×1500×1900mm | |
| Machine weight： | 3000 Kg | |
