Product Information

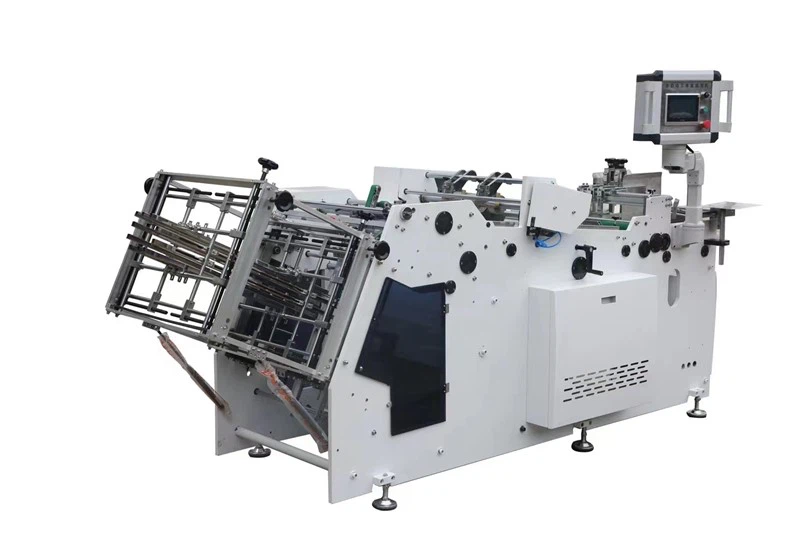

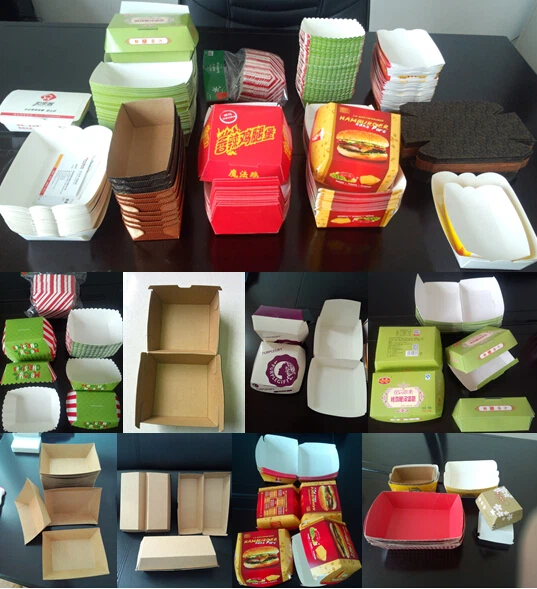

The carton erecting machine is a special kind of forming machine, which can produce hamburger boxes, square boxes, food boxes, fast food boxes, French fries boxes, etc. The products it produceds are made of cardboard and corrugated boxes, which are more environmentally friendly than plastic boxes. And it is produced by wheel contact foam and cold glue, with high quality and high efficiency.
Features
The carton erecting machine is controlled by PLC and can produce various complex boxes. It will automatically stop when paper is jammed or out of paper, which is safer and more convenient to operate. The machine also has the functions of automatic collection, stacking and counting.
Notice
If you want to operate the carton erecting machine more easily, you can choose the automatic cold glue spray system. However, if PE/PP coated paper is used, some high-gloss inks may not stick with cold glue. Or, you can choose a hot melt adhesive system or add a plasma device. Plasma can be applied to the broken PE/PP paper surface, which can then be cold glued.
Specification
| Model | KD-800 Carton Erecting Machine |
| Paper Material | 180—600gsm cardboard /coated paper/ corrugated paper |
| Max. Liner speed | 80—180pcs/min (different paper box shapes, he speed is different ) |
| Paper thickness | Max 1.6mm |
| Carton size | Length: 100-450mm width:100-580mm height: 15-200m |
| Glue Material | Water-base cold glue |
| Paper size | Max: 650mm(W)*490mm(L) |
| Max box size | 450mm*400mm |
| Min box size | 50mm*30mm |
| Air source | 2kgs/cm² |
| Dimension(mm) | 3700*1350*1450mm |
| Voltage | 380V 50Hz / 220V 50Hz |
| Total power | 4.5kw |
| Machine weight | 2000kgs |
