Product Information

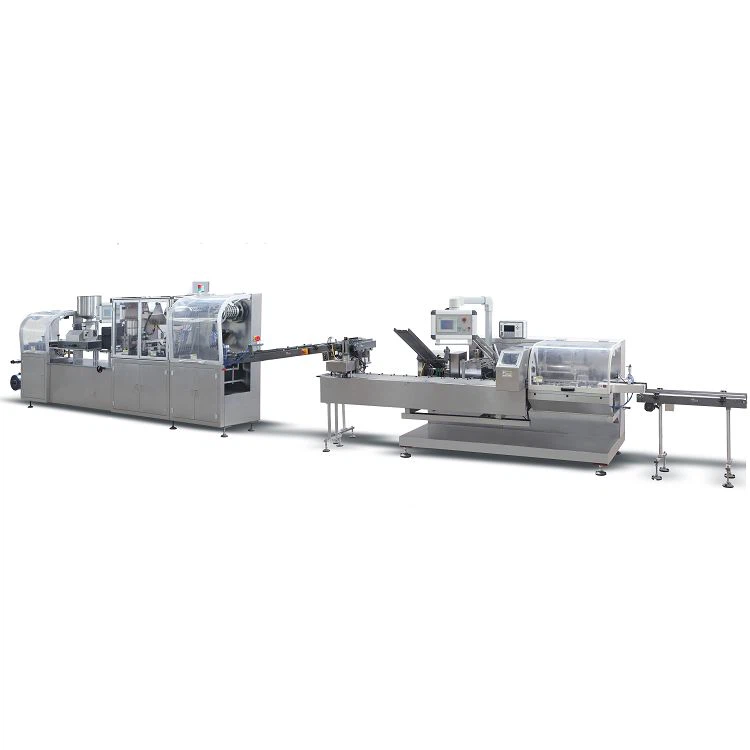

Blister cartoning and packing production lines are dedicated to the small pharmaceutical industry, nutritional industry, laboratories and hospitals. The machine adopts microcomputer control system and frequency conversion speed regulation, which is suitable for packaging of ALU-PVC, ALU-ALU, PVC-PAPER materials. It is cost-effective and easy to operate.
The travel range of the blister cartoning and packing production line is adjustable. Its mold is located in the groove, which is convenient for mold change. The machine adopts positive pressure blow mold and contact feeding. It is equipped with an automatic feeding system, which can design molds and feeders according to different products. It can be equipped with an optional tear-off crimping device, batch printing device and waste collection device.
| Blister Cartoning and Packing Production Line | |
| Cutting speed | 10-50times/min |
| Production capacity | 2000-12000plates/hour |
| Stroke | 30-140mm（according to customer’s request） |
| Maximum forming area | 260*125*30mm |
| Air pump flow | ≥0.5m³/min |
| Forming film | 260*（0.1-0.5）mm |
| Heat sealing film | 260*（0.02-0.04）mm |
| Voltage | 380v 50Hz / 220v 60Hz |
| Dimension | 4200*650*1700mm(L*W*H) |
| Weight | 2000kgs |
| Model: CDZ | 100 | 130 |
| Speed： | 30-100boxes/min | |
| Box size(L*W*H)： | ( 70-220)*(14-90)*(14-65)mm | ( 70-250)*(50-120)*(20-90)mm |
| Instruction book： | Paper material | 50-70g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded(70-210)mm X (20-40)mm | |
| Box paper material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5Mpa, 0.6m³/h | |
| Air pressure： | ≥ 0.9m³3/h | |
| Dimensions (length × width × height): | 3700(L)×1500(W)×1900mm(H) | |
| Machine weight： | 2000 Kg | |
| Special Size Customization | ||
