Introduction

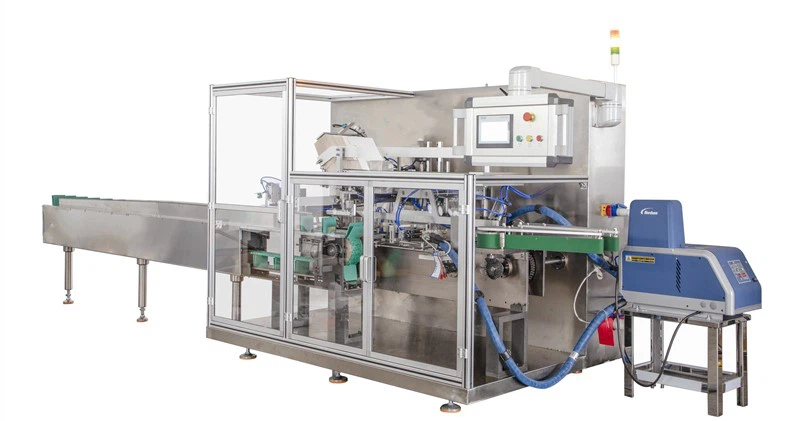

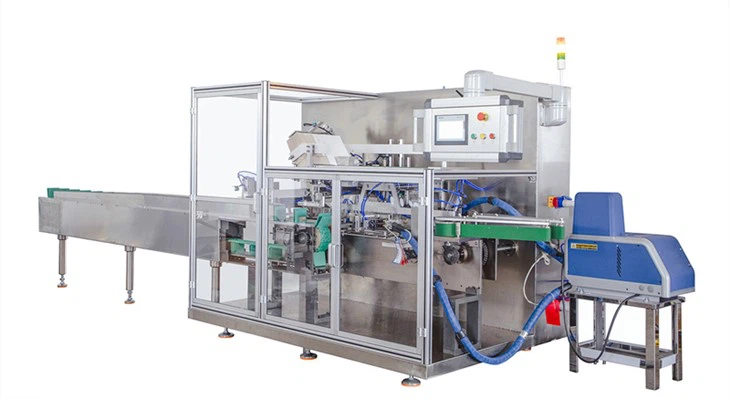

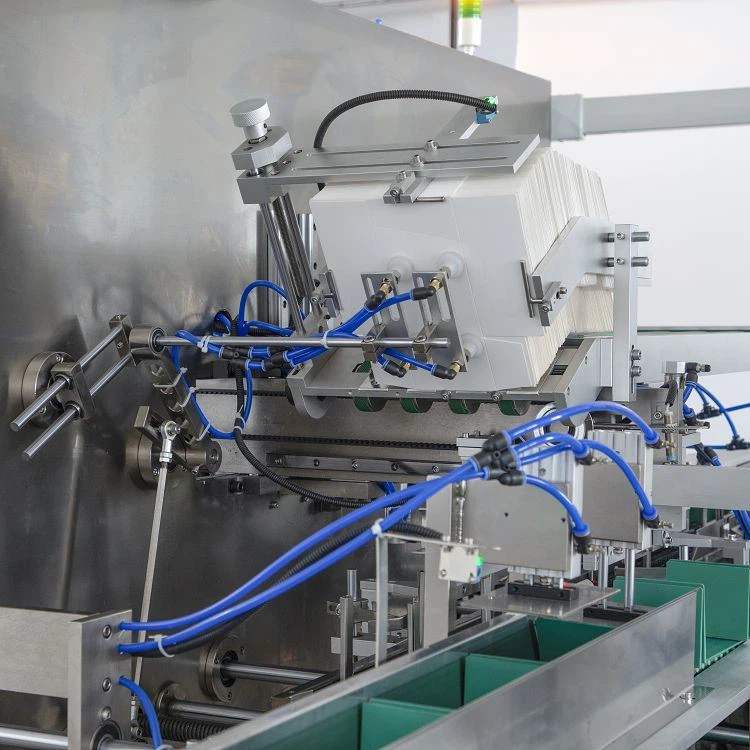

The equipment is a integrating light machine,electricity,gas and machine. It is suitable for irregular multiple product cartoning, similar glycerine enema. The working process is the transfer of medicine board or articles with instructions paper (1-4 fold automatically);The paper box is automatically open and push into products ,and close box by hot melt glue sealing. Machine can automatically complete the batch number, inspection, weighing, labeling process. The machine can be connected with other machine working fully automaticlly.
Specification
| Speed： | ≤80 boxes/min | |
| Box size(L*W*H)： | ( 70-220)*(14-90)*(14-65)mm | ( 70-250)*(50-120)*(20-90)mm |
| Instruction book： | Paper material | 50-70g/m2 |
| Unfolded size range | (80-300)mm*(70-210)mm | |
| Folded size range | 1-4 folded(70-210)mm X (20-40)mm | |
| Box paper material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5Mpa, 0.6m³/h | |
| Air pressure： | ≥ 0.9m³3/h | |
| Dimensions (length × width × height): |
3700(L)×1500(W)×1900mm(H) | |
| Machine weight： | 2000 Kg | |
| Special Size Customization | ||
