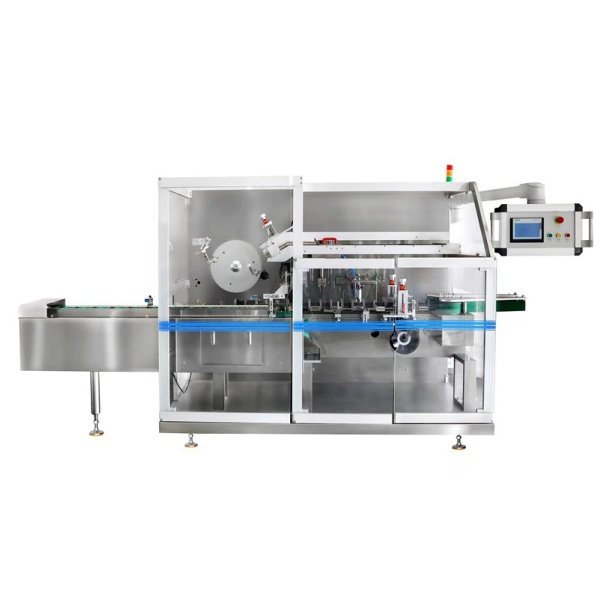

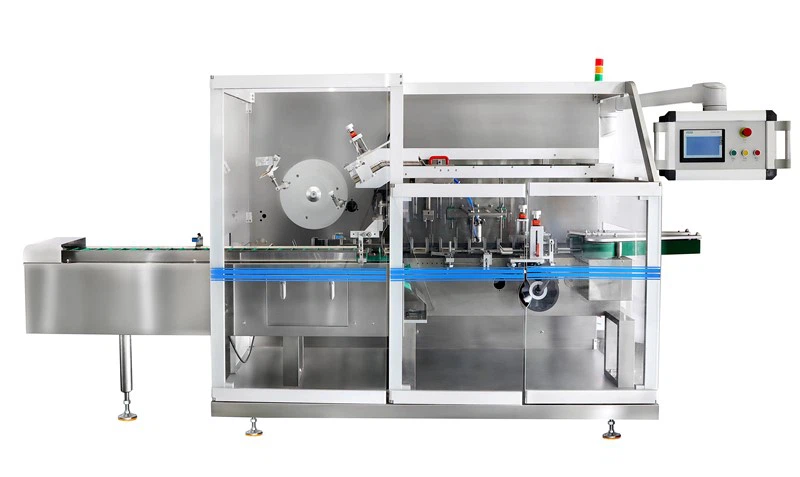

Automatic small box into bigger box packing machine
Machine use sheet metal structure, SUS304 stainless steel with sandblasting treatment,beautiful appearance and easy to operate. IPC control, high-precision, multi-performance, multi-axis motion control technology, achieving stable and reliable operation. Servo-drive system, realizing automatic product feeding, box erecting, box loading, glue spraying and sealing. User friendly HMI with memory function, convenient for daily operation and maintenance.
| Model: | KDZ-80 | |
| Speed： | 30-100boxes/min | |
| Size range of cardboard box： | (70-220)mm * (14-90)mm *(14-65)mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | (80-300)mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 1.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): |
3200×1200×1900mm | |
| Machine weight： | 1800 Kg | |
