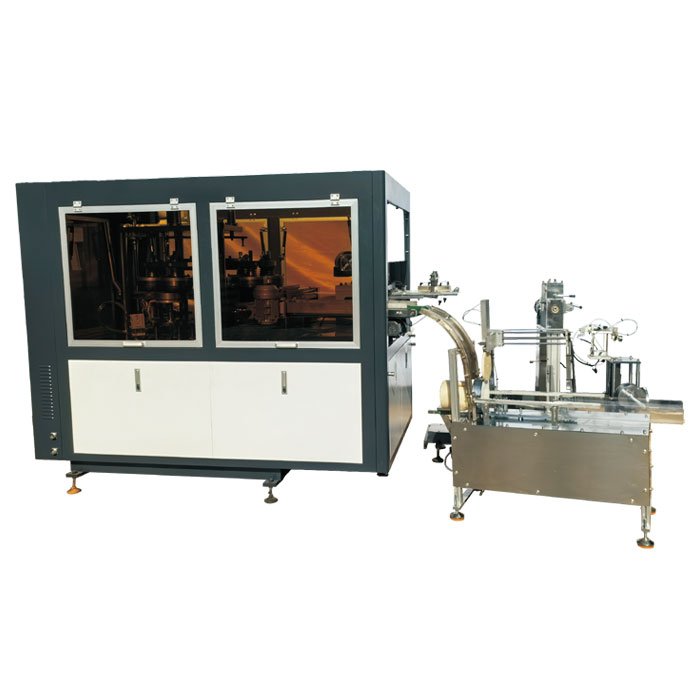

JNFG-50 paper lid machine is our patent machine, which make paper lid, paper cover.
It’s an automatic machine with the functionsAutomatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo),cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold,heating, folding, knurling, and discharge, With convey and counter for collection.
Technical Specification
| Applicable paper | Single and double coated paper, coated coated paper, and glossy coated paper（280-350g/m²） |
| Forming size | Height（10-15）mm，JNZGC-50 diameter（140-200）mm，forming speed（40-60）pieces/minute |
| working voltage | AC380V/50HZ。 |
| Equipment power | 15KW |
| Equipment air source | Gas consumption of 0.02 cubic meters per minute. The working pressure is 0.5MPa. |
| Equipment size | 3500×2200×1800(mm) |
| Package size | (280022002200) |
| Total weight of equipment | 4000KG. |
