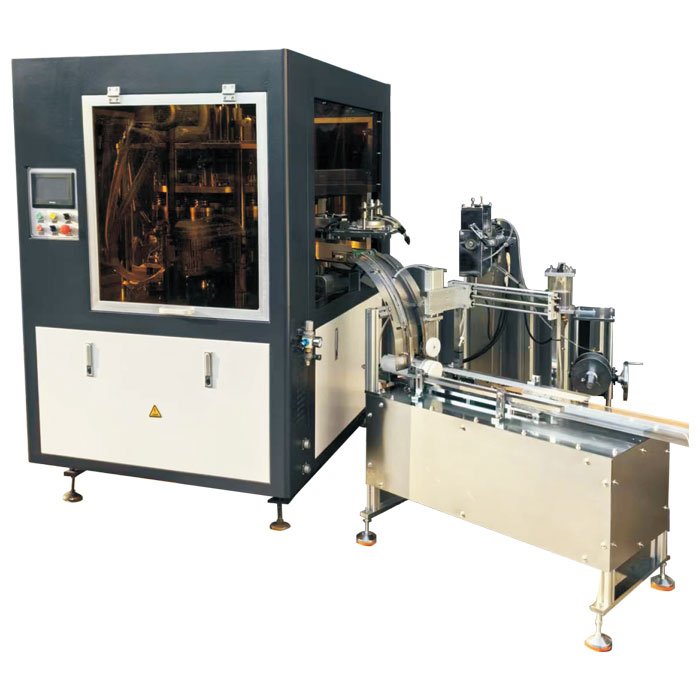

JNZG-60 paper lid machine is our patent machine, which make paper lid, paper cover.It’ s an automatic machine with the functions:Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss,logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feeddisc to mold, heating, folding, knurling, and discharge, With convey and counter for collection.
Technical Specification
| Applicable paper | Single and double laminated paper, coated laminated paper,Polish coated paper (250-350g/m²) |
| Molding size | Height (20-25) mm, JNZG-60 diameter (70-90) mm, molding speed: (50-60) pieces/minute. |
| Working voltage | AC380V/50HZ. |
| Equipment power | 13KW. |
| Equipment air source | Gas consumption 0.3 cubic meters per minute, Working pressure 0.6MP |
| Equipment size | 3200×1700×1900(mm) |
| Package size | (2730×1640×2130) |
| Total weight of equipment | Net weight of the machine, Paper cup lid2200KG, gross weight, 2400KG |
