Product Information

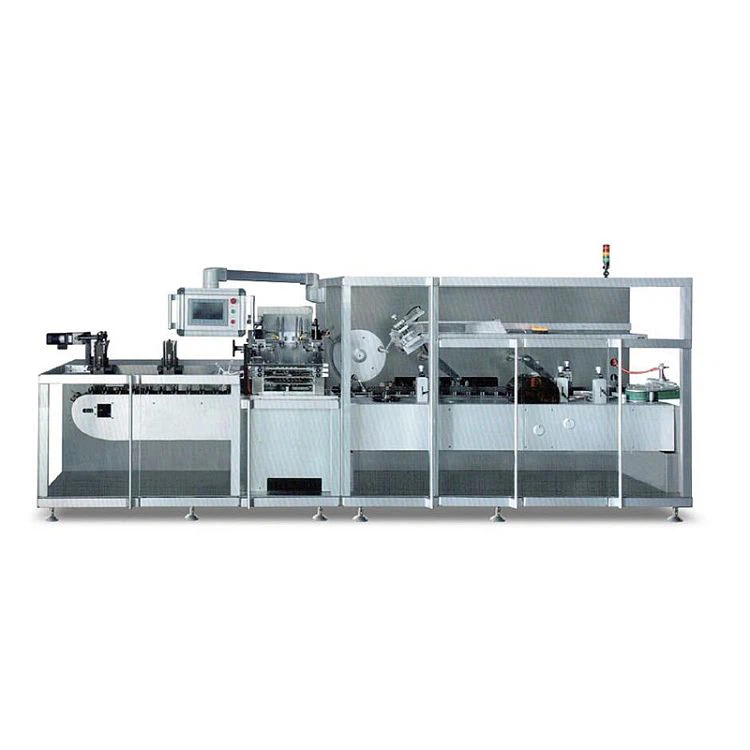

The high speed cartoning machine is innovated with new technology, which can prolong the life of the chain, reduce the noise of the system and improve the production efficiency. It is faster, more precise, compact, easy to operate and easy to maintain. All exterior materials are made of stainless steel housing and high transparency tempered glass.
The machine is a type of packaging equipment designed to automate the process of filling and closing cartons at high speeds. These machines are commonly used in industries such as food and beverage, pharmaceuticals, cosmetics, and household products.

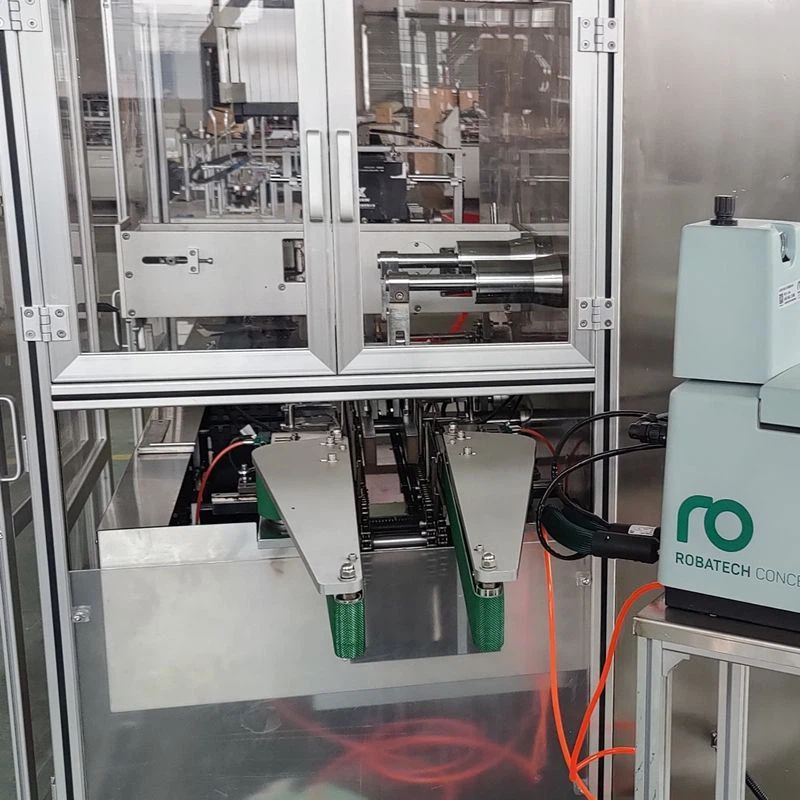

The machine typically consists of a series of stations, including a product feeding station, carton forming station, product loading station, and carton closing station. The product is first fed into the machine, usually via a conveyor system, and then the carton blanks are formed and opened. The product is then loaded into the cartons, and the cartons are closed and sealed.
Features

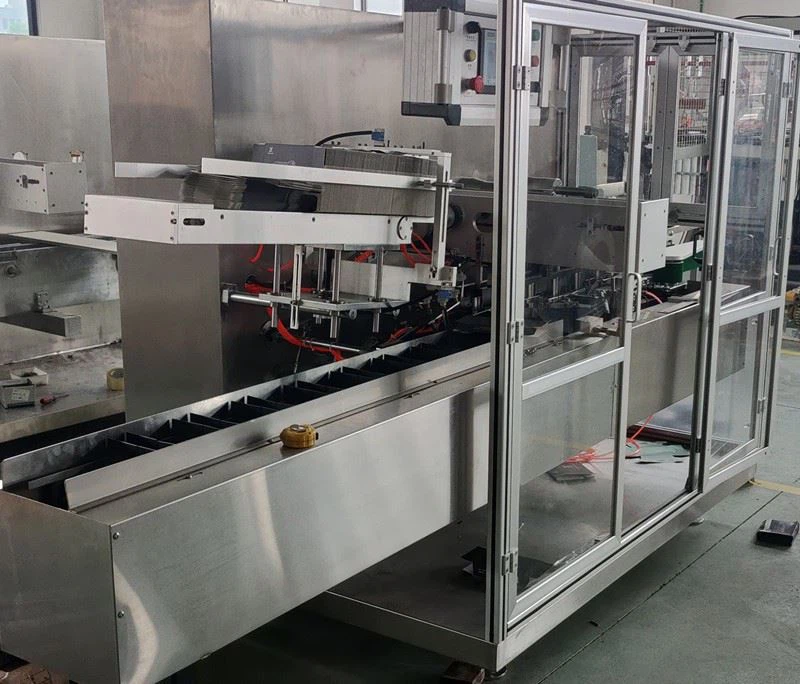

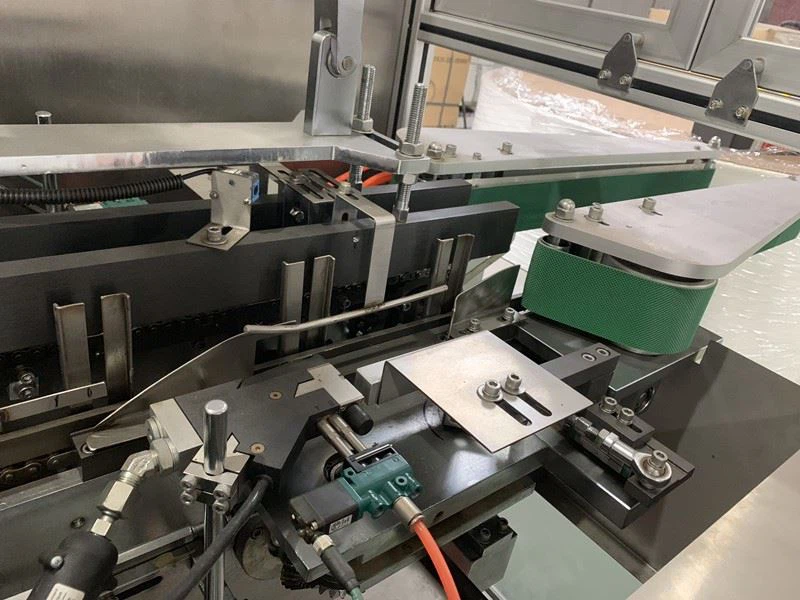

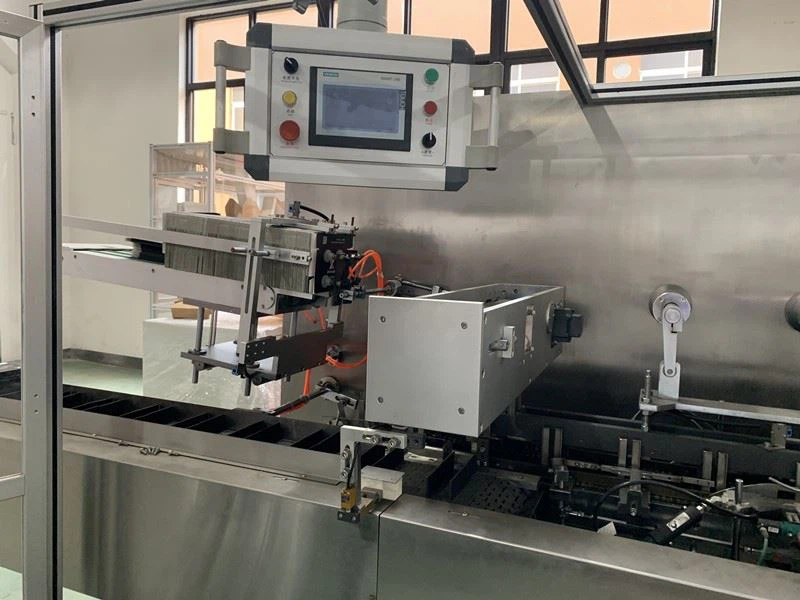

The high speed cartoning machine adopts Siemens motion control system, which can realize full servo linkage production. It can work at high speed with a digital HMI and multitasking mode. The machine adopts an adjustable folding box material library, which is more convenient to adjust and can adapt to different specifications of cartons. It is also equipped with a material grid conveying device and a box body walking device, and the grid spacing can be easily adjusted to meet the different width of the material plate placement and the different box width and box length specifications, so it can improve the efficiency and reduce the labor intensity of operators.
Specification
| Model: | KDZ-300 High Speed Cartoning Machine | |
| Max boxing speed： | 100-350 boxes/min | |
| Size range of cardboard box： | (65-155)×(40-80)×(15-50) mm | |
| Instruction book： | Paper material | 50-65g/m2 |
| Unfolded size range | （80-300）mm*(70-210)mm | |
| Folded size range | 1-4 folded (70-210)mm X (20-40)mm |
|
| Box material： | 250~450g/㎡ | |
| Main motor power： | 13.5 kw | |
| Power supply： | 380V 50Hz (220V 60 Hz) | |
| Work pressure： | 0.5-0.7 Mpa | |
| Compressed gas consumption: | ≥ 0.3m3/h | |
| Dimensions (length × width × height): | 6800×1900×2100mm | |
| Machine weight： | 4500 Kg | |
Some additional features of high speed cartoning machines include:
Advanced control systems to ensure precise and consistent product placement and carton closing
Automatic changeover capabilities to accommodate different product and carton sizes
Vision systems to verify product presence, position, and orientation
Automatic reject systems to remove improperly packed or defective products
Easy access for cleaning and maintenance to minimize downtime and optimize productivity.

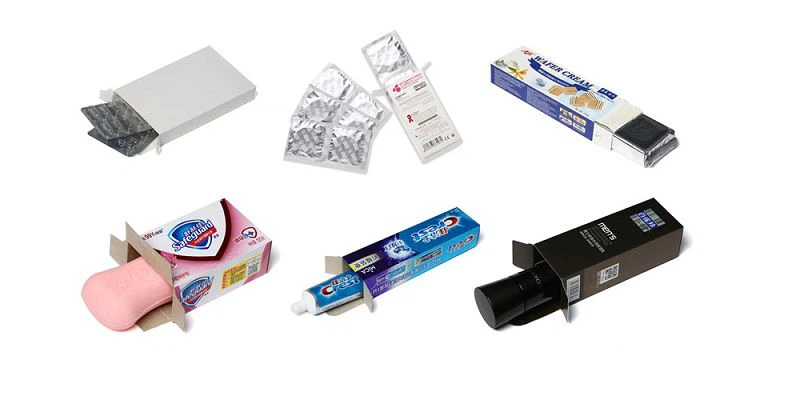

high speed cartoner machine can handle a wide range of products, including bottles, blister packs, tubes, sachets, and pouches. The machines can also accommodate different types of carton formats, such as tuck-end cartons, gable-top cartons, and tray-style cartons.
One of the key benefits of a high speed cartoning machine is its ability to increase production efficiency and reduce labor costs. These machines can handle large volumes of products at high speeds, reducing the need for manual labor and increasing output. They can also help improve product quality and consistency by reducing errors and minimizing product handling.
