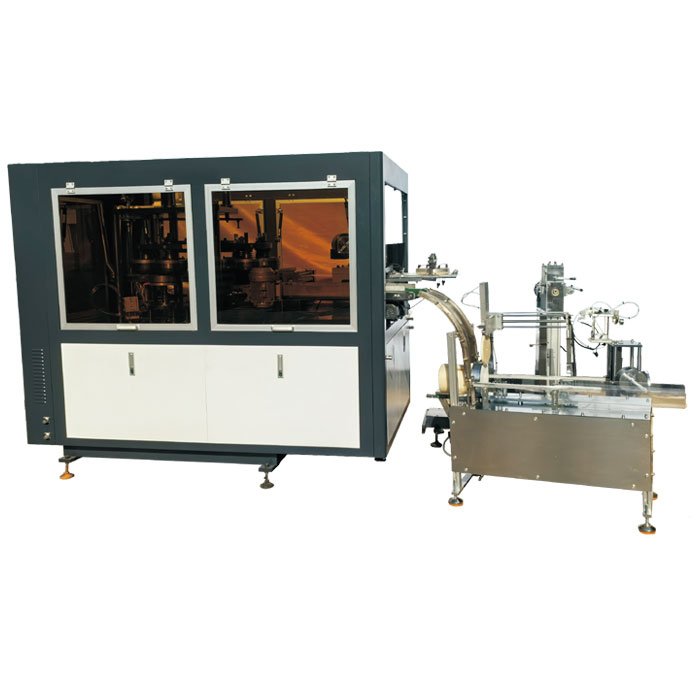

JNZG-50 paper lid machine is our patent machine, which make paper lid. paper coverlt’s an automatc machine with the funcions: Automatic rol paper feed, creasing(make the foming guide line), emboss (can make emboss. logo), cross cut (make hole for straw), punching (punch the rol paper to lid open disc) auto fed disc to moldheating, folding, knurling, and discharge,With convey and counter for collection.
| Technical Specification | |
|---|---|
| Suitable paper | One & Two side PE coated paper, glossy coated paper. Paper weight: 250~400 gsm |
| Lid size | Lid height: 10~15 mm, Diameter 140-200mm |
| Speed | 45~60 pcs/minute |
| Power Source | AC380V 3-phase, 50Hz |
| Total power | 14KW |
| Air requirement | Consumption 0.02cubic meter/minute, Pressure:0.3MPa |
| Machine size | 2600X1850X2100mm |
| Weight | 3300KG |
