High Speed Automatic Strapping Machine

Product Information

The high speed automatic strapping machine fills the blank time of high-speed packing, and can realize the connection of unpacking, packing and sealing for a complete packing production line. The operation process of the equipment is stable and convenient, and can be used in the pharmaceutical, food, and cosmetic industries, and the equipment meets GMP standards.

Features

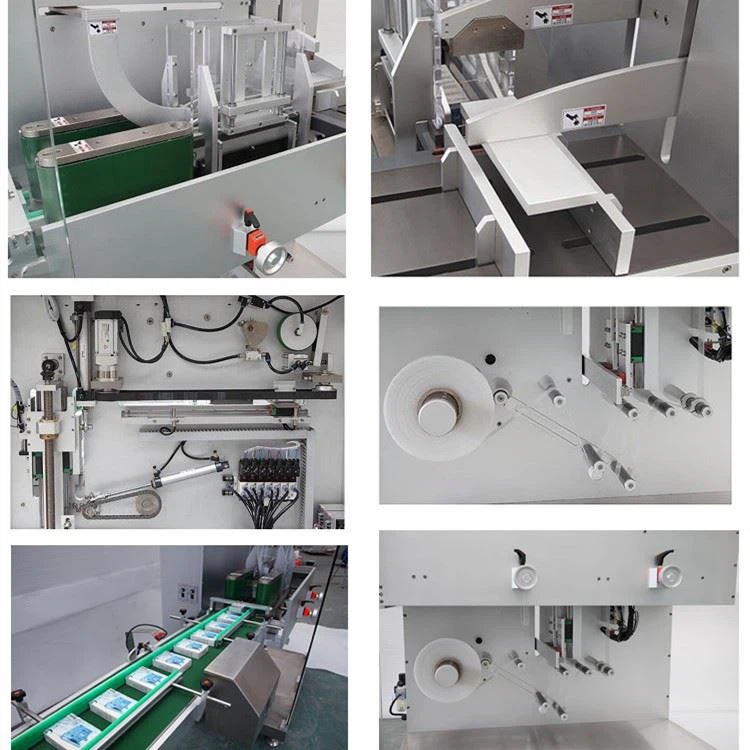

The fuselage and components of the high speed automatic strapping machine use all-aluminum high-end advanced design, which is safe and durable. It adopts imported electrical components and PLC man-machine interface operation, which has a longer service life and is more convenient to use. The machine has the functions of automatic detection, automatic packing and automatic conveying, and the work efficiency is high. The machine is equipped with an automatic alarm device, which will automatically alarm when the belt is missing or faulty. It can be used stand-alone or with unmanned packaging line.

Technical parameters

Speed： 15-25 box/min

According to the size of the box and the way of stacking).

Strapping Size： Max 240*150*300mm

Min 50*60*90mm

Package Size： PE(width 30-80mm, thickness30-80um)

Power supply: 220V/50HZ

Total power： 1.5kw

Air pressure： 0.6-0.8MPa

Weight: 500kgs

Transportation Size: 1300*250*800(mm)

Connect the front cartoning machine

Machine Size： 1100*800*1600(mm)

Advantage

1 High-speed automatic strapping machines are designed to handle large volumes of packages and operate at high speeds, typically up to 60 straps per minute.

2.These machines have an automatic tension adjustment system that allows for consistent and accurate tension control of the strapping, ensuring that the strapping is tight and secure around the package.

3. High-speed automatic strapping machines are easy to operate and can be operated by one person. They often have user-friendly interfaces and programmable controls that allow for customization of the strapping process.

4.These machines are built with high-quality materials and components that ensure they are reliable and durable, with minimal maintenance requirements.
