Applications:
Ideal for pharmaceuticals, food, light food,and electronic components industry.
Benefits:
Ensures packaging stability
Enhances product leakproofness
Improves production efficiency
Key Features:
·Photoelectriccontrolsystem
·Handles PVC/PTP/PS/PET aluminum materials and soon
·Auto feeding & waste edge punching
·Photoelectric detection &correction
Technical Date:

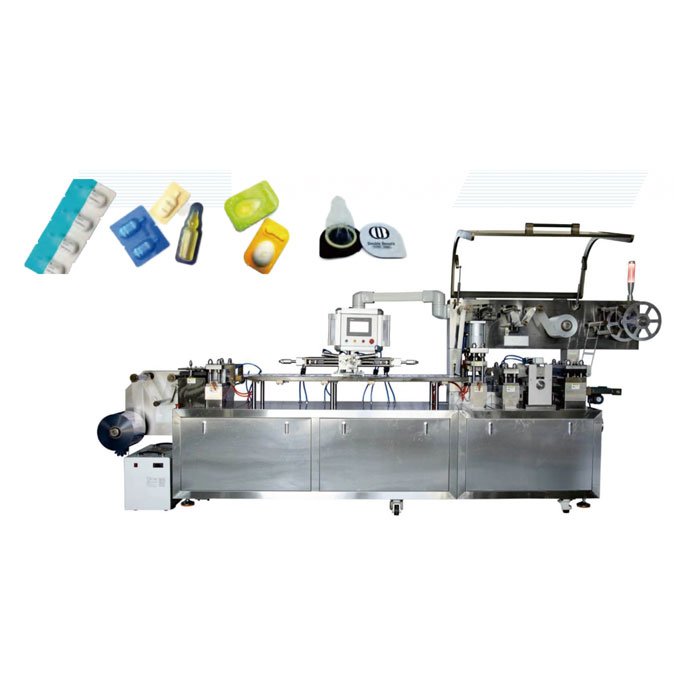

| Model | DPP-260 |
| Speed | 15-25cuts/min |
| Material | Blister material:Width250mm,Thick:0.15-0.5mm;Cover material:Width250mm,Thick:0.02-0.035mm |
| Maximum forming depth(mm) | 35mm |
| Maximum molding area(mm) | 24013035mm |
| Power supply | 380V 50Hz |
| Total Power(KW) | 5KW |
| Compressed air pressure(MPa) | 0.5-0.7MPa |
| Cooling water consumption(m³/h) | Ordinary tap water circulation cooling. |
| Overall dimension(L×W×Hmm) | 4200×650×1640mm |
| Weight | 1500KG |
