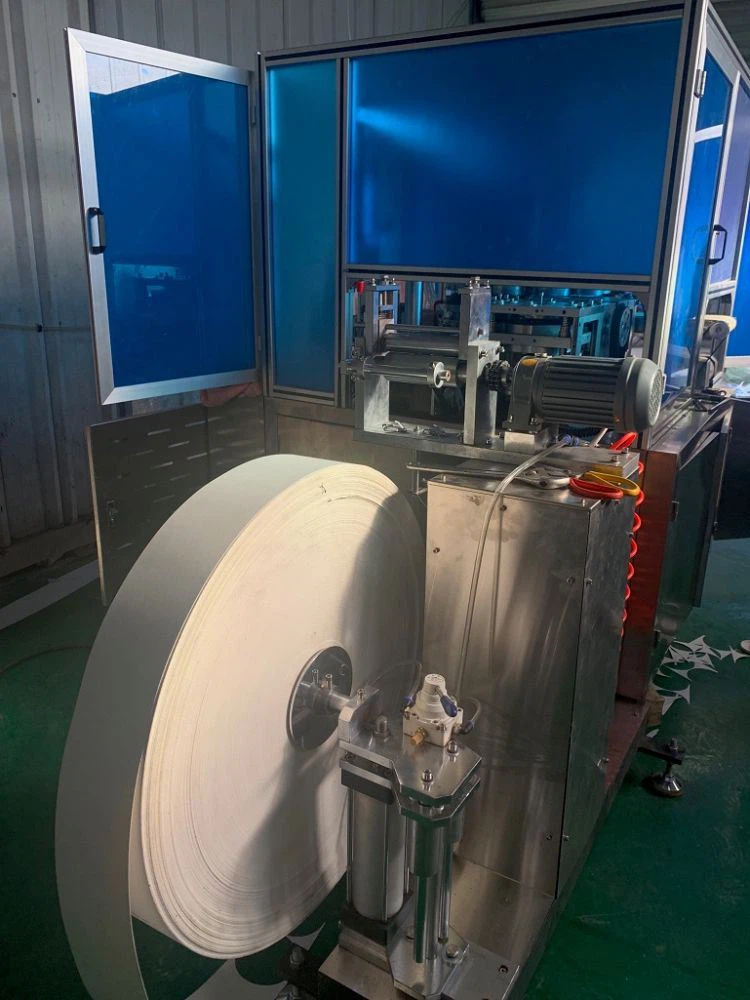

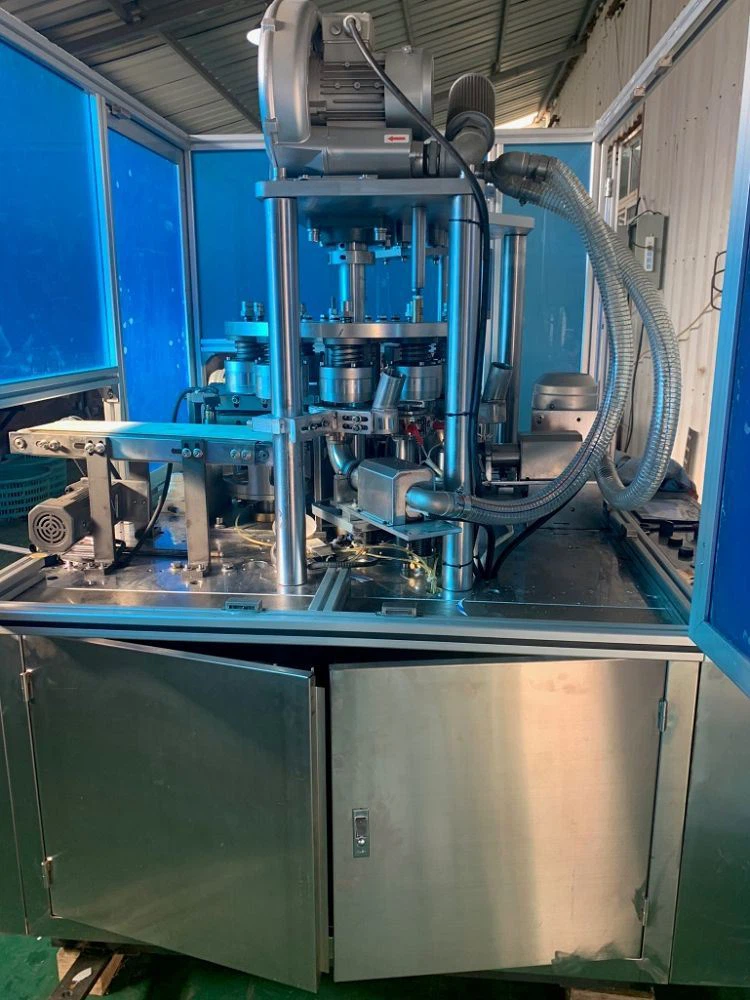

Automatic Paper Lid Machine

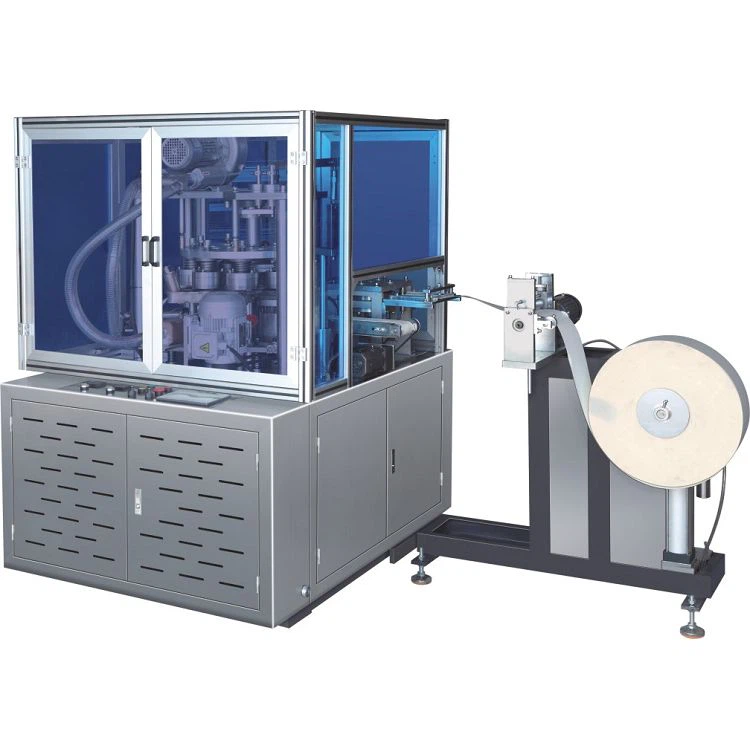

JN-100 Automatic paper lid machine

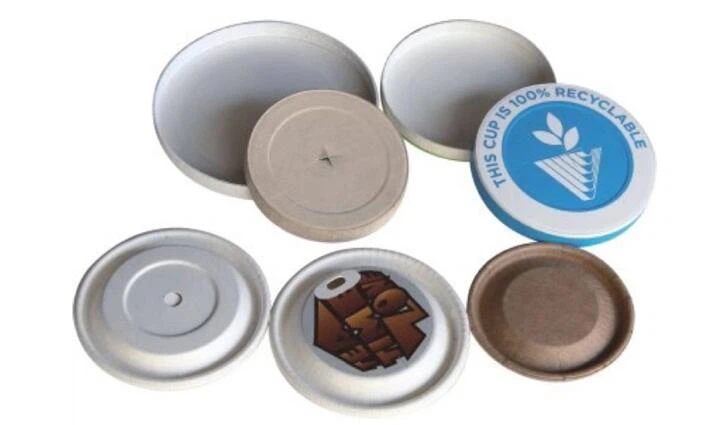

Automatic paper lid machine is our patent machine, which make paper lid, paper cover.

It’s an automatic machine with the functions:

Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge,With convey and counter for collection.

Main Specificiation:

●1, Suitable paper: One & Two side PE coated paper, glossy coated paper.

●2, Paper weight: 250~350 gsm

●3, Lid size: Diameter 55~100 mm & 100~145mm

●4, Lid height: 8~15 mm

●5, Speed: 70~100 pcs/minute

●6, Power Source: AC380V 3-phase, 50Hz,

●7, Total power: 10KW,

●8, Weight: 2500KG

●9, Machine size: 2600*1500*1800mm,

●10, Air requirement: Consumption 0.02cubic meter/minute, Pressure:0.3MPa,

Versatile: The machine can handle a variety of paper types and sizes, making it suitable for use in many different industries.

User-Friendly: The machine is designed to be user-friendly, with a simple interface that allows for easy setup and operation. The machine also has safety features to protect the operator from injury.

High-Quality Finished Products: The automatic paper lid machine produces high-quality finished products, which can be used for a variety of applications, including food packaging, beverage cups, and dessert cups.

Overall, the automatic paper lid machine is a highly efficient and versatile piece of equipment that is widely used in the food and beverage packaging industry. Its automated operation, high speed, and precision forming make it a valuable asset for businesses looking to improve their production processes and create high-quality finished products.
